Product
Name

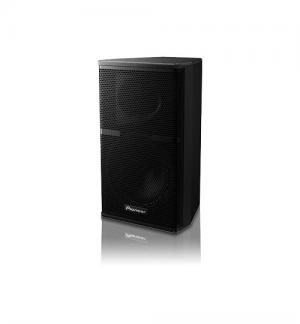

XY-101
Manufacturer
Pioneer DJCategory
- Full range 10"
Main parameters
| Type: | Full range 10" | |
|---|---|---|
| Frequency range: |
70 Hz - 20000 Hz |
|
| SPL (1W/1m) [dB]: | 94 dB | |
| SPL max [dB]: | 120 dB | |
| Dispresion: | 90 °H × 60 °V, rotatable | |
| Self powered: | ||
| AES Power: | --- | |
| RMS Power: | 400 W | |
| Program Power: | 800 W | |
| Max Power: | --- | |
| Impedance | 8 Ω |
Components
| LF speaker: | 1 x 10" (ND) | |
|---|---|---|
| MF speaker: | --- | |
| HF speaker: | 1 x 1" (ND) |
Physical
| Cover: | Plywood | |
|---|---|---|
| Finish: | Structural paint | |
| Height: | 508 mm | |
| Width: | 292 mm | |
| Depth: | 280 mm | |
| Weight: | 14 kg |
Others
| Stand socket: | 35 mm | |
|---|---|---|
| Flying: | 4x M8 on top, 4x M8 on bottom, 3x M8 on rear, 4x M8 on side, 4x M6x M6 on rear on rear | |
| Accessories: | polemount socket cover | |
| Connectors: | 2x Neutrik SpeakON NL4 | |
