Product
Name

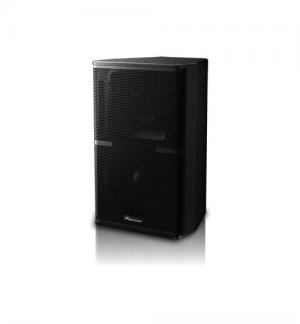

XY-122
Manufacturer
Pioneer DJCategory
- Full range 12"
Main parameters
| Type: | Full range 12" | |
|---|---|---|
| Frequency range: |
70 Hz - 20000 Hz |
|
| SPL (1W/1m) [dB]: | 101 dB | |
| SPL max [dB]: | 127 dB | |
| Dispresion: | 90 °H × 60 °V, rotatable | |
| Self powered: | ||
| AES Power: | --- | |
| RMS Power: | 400 W | |
| Program Power: | 800 W | |
| Max Power: | --- | |
| Impedance | 8 Ω |
Components
| LF speaker: | 1 x 12" (ND) | |
|---|---|---|
| MF speaker: | --- | |
| HF speaker: | 1 x 1" (ND) |
Physical
| Cover: | Plywood | |
|---|---|---|
| Finish: | Structural paint | |
| Height: | 622 mm | |
| Width: | 380 mm | |
| Depth: | 360 mm | |
| Weight: | 23 kg |
Others
| Stand socket: | 35 mm | |
|---|---|---|
| Flying: | 8 × M10 threaded mounting points (4 top/4 bottom), 2 × M10 threaded mounting points on rear, 4 × M10 threaded mounting points on side (2 left/2 right), 4 × M8 threaded points on rear | |
| Accessories: | polemount socket cover | |
| Connectors: | 2x Neutrik SpeakON NL4 | |
