Product
Name

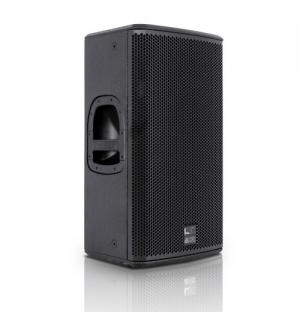

LVX 12
Manufacturer
dBTechnologiesCategory
- Full range 12"
- Self powered 12"
Main parameters
| Type: | Full Range 12" | |
|---|---|---|
| Frequency range: |
62 Hz - 19000 Hz (-6dB) 55 Hz - 20000 Hz (-10dB) |
|
| SPL (1W/1m) [dB]: | --- | |
| SPL max [dB]: | 127 dB | |
| Dispresion: | 90ºx70º | |
| Self powered: | 1600 W, class D | |
| AES Power: | --- | |
| RMS Power: | --- | |
| Program Power: | --- | |
| Max Power: | 1600 W | |
| Impedance | --- |
Components
| LF speaker: | 1 x 12" | |
|---|---|---|
| MF speaker: | --- | |
| HF speaker: | 1 x 1" |
Physical
| Cover: | Plywood | |
|---|---|---|
| Finish: | Structural paint | |
| Height: | 610 mm | |
| Width: | 360 mm | |
| Depth: | 360 mm | |
| Weight: | 17 kg |
Others
| Stand socket: | D36 mm | |
|---|---|---|
| Flying: | 12 x M10 | |
| Accessories: | --- | |
| Connectors: | --- | |
